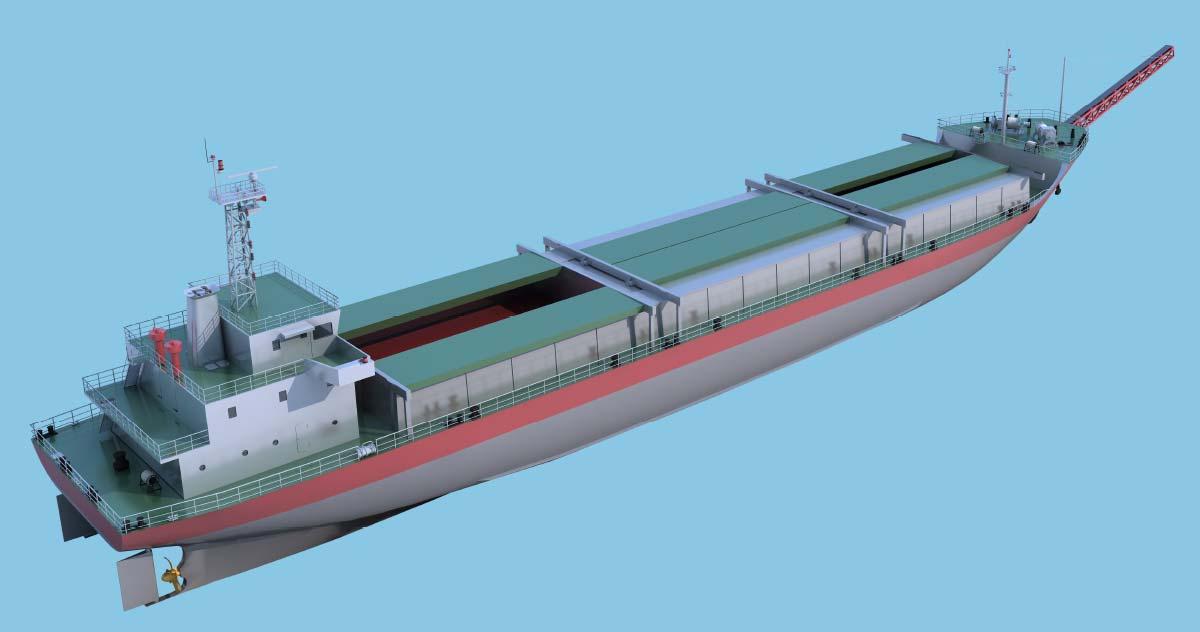

设计概述本船为双机、双桨、双壳结构的4200DWT自卸运输船，且该船适合航行在沿海航区及内河航道。本船主要以运输砂、煤和矿石等货物为主，并且配有一套高效的输送带自卸系统，每小时卸货量可达2000吨。
船级CLASSIFICATION
|
CCS
|
|
主尺度PRINCIPAL DIMENSIONS
|
|
总长LENGTH OF OVERALL(LOA)
|
93.887m
|
|
水线长LENGTH BETWEEN LOAD-WATERLINE (LWL)
|
91.385m
|
|
型宽BREADTH（B）
|
16.80m
|
|
型深DEPTH (D)
|
6.00m
|
|
设计吃水DESIGN DRAFT(T)
|
4.60m
|
|
载重吨DEADWEIGHT(T)
|
4200
|
|
总吨GROSS TONNAGE
|
2991
|
|
净吨NET TONNAGE
|
1675
|
|
船员CREW NUMBER
|
11P
|
SPECIFICATION
The vessel to be twin main engine, twin screw 4200DWT self-unloading carrier with double skin, which is suitable to sail in coastal area and inland waterway. The vessel is mainly suitable for carrying ore and coal with one consummate self-unloading system, of which the goods discharging rate could be 2000t/h.
航速及续航力SPEED AND ENDURANCE 航速SERVICE SPEED 10.2kn 续航力ENDURANCE 1000nmile
主机MAIN ENGINE (TYPE&SET)
|
CW6200ZC-16
|
2
|
|
MCR
|
350kW×1000rpm
|
|
SFOC:
|
≤197g/kWh
|
|
齿轮箱GEAR BOX (TYPE&SET)
|
|
HCD600P (3.429:1 AND PTO 1:1.5) 1 HCD600P (3.429:1 ) 1 发电机GENERATOR (TYPE&SET) 发电机GENERATOR SET 50KW×2 轴带发电机SHAFT GENERATOR SET 300KW×1 自卸设备SELF-UNLOADING SYSTEM 输送能力TRAFFIC CAPACITY 2000t/h REMARK: THE SHAFT GENERATOR WILL PROVIDE POWER SOURCE FOR CONVEYER BELT SELF-UNLOADING SYSTEM.
