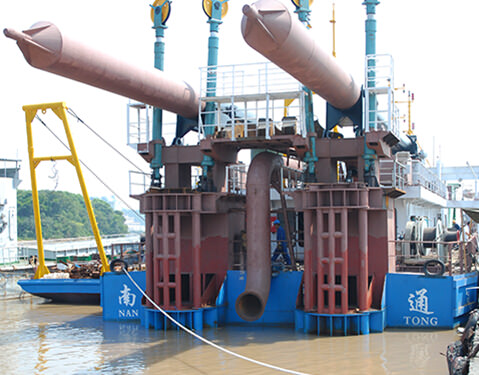

1650m3/h CUTTER SUNCTION DREDGER
GENERAL
This vessel for a domestic coastal navigation with single continuous deck, is a double rudder, double screw fixed pitch propeller and diesel engine driven, first with reamer frame steel cutter suction dredger.
|
Main dimensions
|
|
Length,overall
|
64.90 m
|
|
Length, b.p.
|
45.80 m
|
|
Breadth, moulded
|
12.00 m
|
|
Depth, moulded
|
3.50 m
|
|
Design draught
|
2.00 m
|
|
Work depth
|
15.0 m
|
|
Speed
|
7.5 kn
|
|
Complement
|
10 P
|
|
Class ZC
|
|
Main engine
|
|
Type
|
R6160A-3/R6160A-4 ,2 set
|
|
MCR
|
184 kW
|
|
Speed
|
1000 r/min
|
|
CSR
|
abt.165.6 kW
|
|
Propeller Speed
|
abt.333.3 r/min
|
