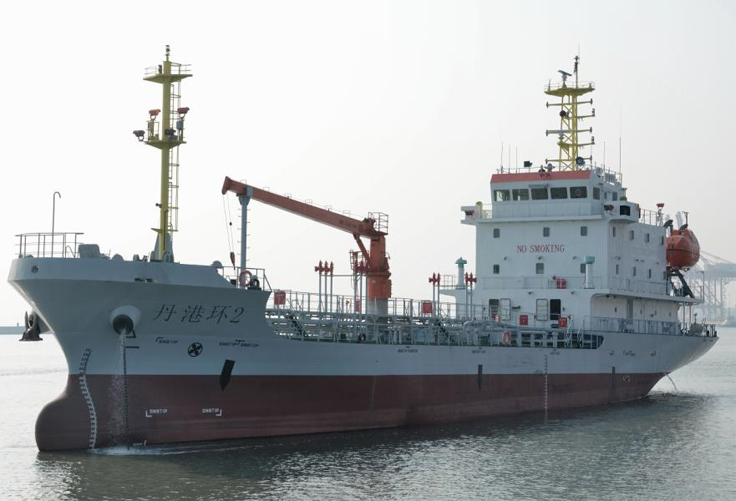

2000DWT OIL TANKER&OIL
SPILL RECOVERY VESSEL
GENERAL
This vessel is designed to sail Greater Coastal
Service, Can be used for supply to other ships, oil is mainly H.O.T., HFO TANK
and D.O.T. Mainly for the offshore oil slick flash point above 60 ℃ oil containment, cleanup and recovery,has a single continuous deck and fore castle, single
propellers, single diesel-driven double bottom, double hull oil spill recovery
vessel.
Main dimensions
|
|
Length,overall
|
74.00m
|
Length, b.p.
|
70.00m
|
Breadth, moulded
|
12.80m
|
Depth, moulded
|
6.20m
|
Design draught
|
4.80m
|
Speed
|
13.05 kn
|
Complement
|
15P
|
Deadweight
|
|
At
Design draught
|
~2178.8t
|
Tonnage
|
G.T.
|
1632
|
Class
|
CCS
|
Capacity(98%volumes)
|
Cargo tank
|
abt.518m3
|
Marine diesel oil tanks
|
abt.44m3
|
Fresh
water tanks
|
abt.25m3
|
Water ballast tanks
|
abt.190m3
|
Main engine
|
Type
|
8320ZCd-4,1 set
|
MCR
|
1765 kW
|
Speed
|
500r/min
|
CSR
|
789kW
|
Propeller Speed
|
abt. 250 rpm
|
Gear Box
|
Reduction ratio
|
2.0:1
|
Fuel oil consumption
|
The
designed daily D.O. consumption of main engines at MCR of 1765KW shall be
approx.8.68t/day.
|
Crane
|
3.0t×19m
|
1 set
|
Oil
fence device
|
Type
|
Gulf type inflatable booms,1 set
|
Oil
spill dispersant spraying equipment
|
Type
|
Marine oil spill dispersant arm,2 set
|
Propeller
|
Type
|
fixed pitch
|
Sum
|
1
|
Bow
Thrust
|
Sum
|
1
|
Electric generating plant
|
Main generator
|
CCFJ250J-WX1
|
250kW 2set 400V
50HZ
|
Generator set for harbor
|
CCFJ90J-WZ
|
90kW 1set 400V
50HZ
|
